YCS-103 Three-Phase Power Source for Energy Meter Testing

نام تجاری:	GENY
شماره مدل:	YCSS-103
مقدار تولیدی:	1
قیمت:	negotiate rates
شرایط پرداخت:	T/T ، L/C ، D/P ، T/T
توانایی عرضه:	10 عدد / 1 ماه

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع:

چین

گواهی:

ISO, CE

سند:

Catalogue——Meter Test S...m..pdf

دقت تنظیم:

بهتر از 0.05٪ در مقدار دامنه نهایی

ثبات:

بهتر از 0.005% در ساعت (زمان ادغام 150 ثانیه)

عامل اعوجاج:

برای بار مقاومت خطی بهتر از 0.3 ٪

هارمونیک ها:

2 - بیست و یکم قابل برنامه ریزی رایگان

عرضه ولتاژ:

3×220/380V±10% یا سفارشی 50/60Hz±2Hz

خروجی جریان:

3× (1 میلی آمپر - 100 آمپر)

جزئیات بسته بندی:

تخته سه لا

قابلیت ارائه:

10 عدد / 1 ماه

برجسته کردن:

three-phase power source for energy meters,stationary power source with warranty,energy meter testing power supply

stationary power source with warranty

energy meter testing power supply

توضیحات محصول

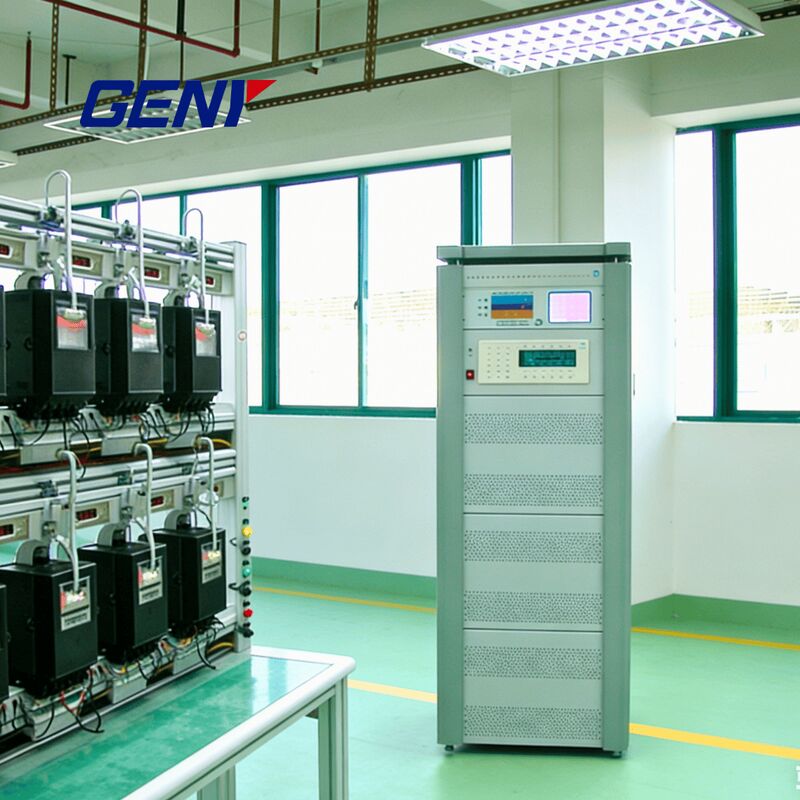

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards

Typical Applications
