High-Precision Stationary Power Source for Energy Meter Test Bench

نام تجاری:	GENY
شماره مدل:	YCSS-103
مقدار تولیدی:	1
قیمت:	negotiate rates
شرایط پرداخت:	T/T ، L/C ، D/P ، T/T
توانایی عرضه:	10 عدد / 1 ماه

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع:

چین

گواهی:

ISO, CE

سند:

Catalogue——Meter Test S...m..pdf

عرضه ولتاژ:

220V±10% یا 50/60Hz±2Hz

جریان آزمایش خروجی جریان:

1 میلی آمپر - 100 آمپر

خروجی ولتاژ آزمایش (بی طرفی فاز):

24 ولت - 288 ولت یا سفارشی

تنظیم بار از 0-max. بار:

<0.01 ٪

جزئیات بسته بندی:

تخته سه لا

قابلیت ارائه:

10 عدد / 1 ماه

برجسته کردن:

high-precision stationary power source,energy meter test bench power supply,stationary power source with warranty

energy meter test bench power supply

stationary power source with warranty

توضیحات محصول

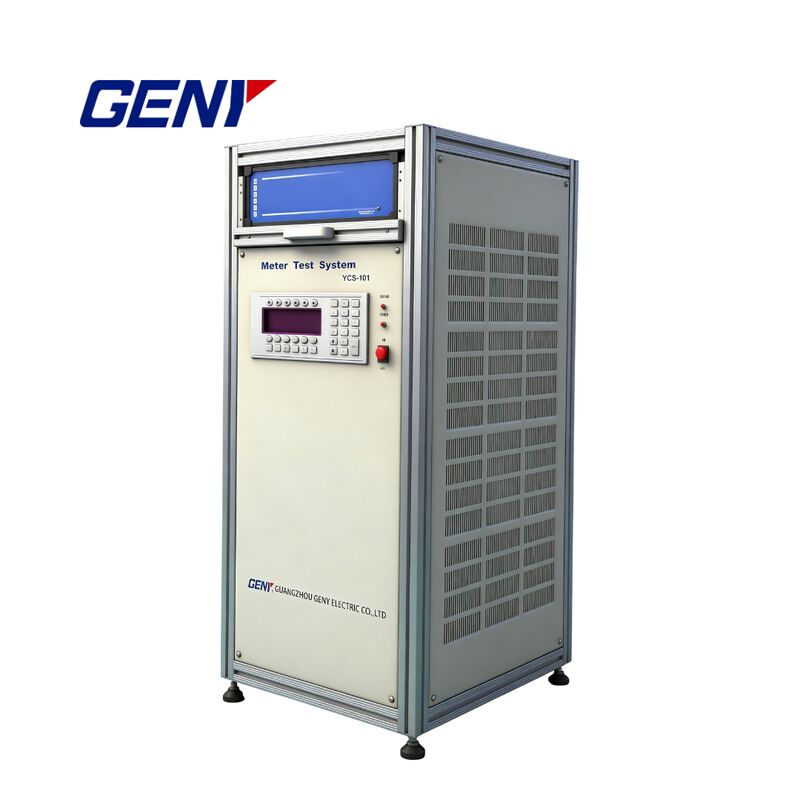

High-Precision Stationary Power Source for Energy Meter Test Bench

Product Overview

The Stationary Power Source is a high-accuracy, high-stability programmable power source specifically designed for energy meter testing, calibration systems, and metrology laboratories. It provides reliable and stable voltage and current output to ensure precise and repeatable test results.

High accuracy and excellent output stability, ideal for precision measurement applications
Equipped with RS232 communication interface for automatic and remote operation
Optional built-in keyboard for convenient manual operation
Supports programmable harmonic output from 2nd to 21st order, with adjustable amplitude and phase angle
Rugged aluminum alloy enclosure, lightweight, high strength, and corrosion-resistant
Comprehensive protection functions, including:
- Overload protection
- Short voltage circuit protection
- Open current circuit protection
User-friendly control software with simple operation and fast system integration

Applications

National and regional utility companies
Government metrology and calibration bureaus
Energy meter and electrical instrument manufacturers
Testing laboratories and research institutions
Energy meter test benches and verification systems

Primary Competitive Advantages

Industrial-grade, high-quality design for long-term stable operation
High power output capacity:
- Maximum voltage output power: 1000 VA
- Maximum current output power: 1500 VA
Extremely high power stability, suitable for high-precision calibration environments
Low distortion performance, with total harmonic distortion less than 0.3% under linear resistive load
