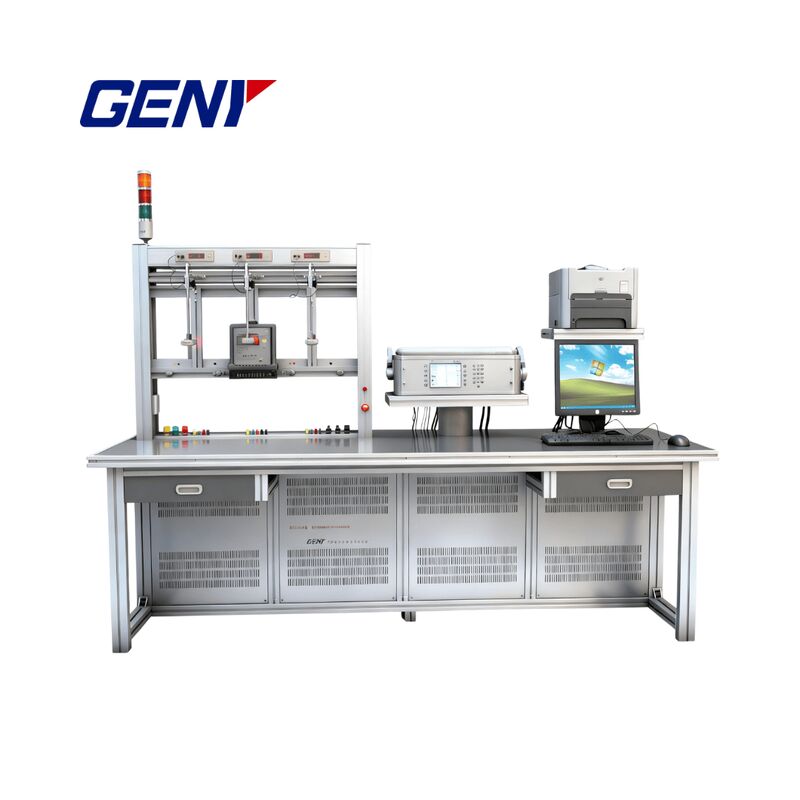

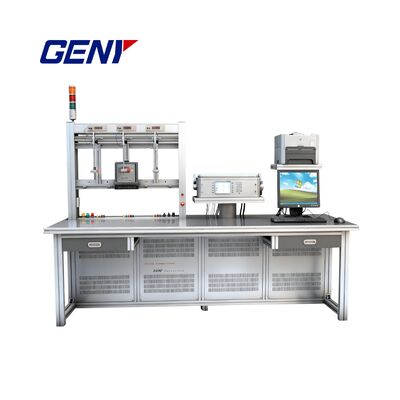

Efficient Three-Phase Energy Meter Test Bench for Modern Metering Labs

Name: Efficient Three-Phase Energy Meter Test Bench for Modern Metering Labs
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

نام تجاری:	GENY
شماره مدل:	YC1893D
مقدار تولیدی:	1 عدد
قیمت:	Negotiations
شرایط پرداخت:	L/C، T/T، D/P
توانایی عرضه:	100/سال

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع:

چین

گواهی:

ISO, CE

خروجی ولتاژ تست (فاز خنثی):

3X (24V-300V) (یا سفارشی)

قطعنامه:

بهتر از 0.01٪ مقدار مقیاس کامل محدوده

دقت تنظیم:

بهتر از 0.05٪ در مقدار دامنه نهایی

ثبات:

بهتر از 0.005% در ساعت (زمان ادغام 150 ثانیه)

جزئیات بسته بندی:

کیس تخته سه لا

قابلیت ارائه:

100/سال

برجسته کردن:

three-phase energy meter test bench,energy meter testing equipment for labs,modern metering lab test bench

energy meter testing equipment for labs

modern metering lab test bench

توضیحات محصول

Efficient Three-Phase Energy Meter Test Bench for Modern Metering Labs

Advanced testing solution for accurate verification of three-phase energy meters in laboratory environments.

Specifications

Type	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Reference Standard Meter	SZ-03A-K8
Scanning Head	YCG-2-series
Voltage
Test voltage output(Phase-Neutral)	3x(24V-300V)(or customized)
Power of the voltage output	Max.3x100VA	Max.3x250VA	Max.3x500VA	Max.3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Current
Test current output	3x(1mA-120A/200A)
Power of the current output	Max.3x250VA	Max.3x500VA	Max.3x1000VA	Max.3x2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Phase angle
Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Features & Functions

Supported Meter Types: 3P4W, 3P3W
Test Modes: Active, reactive, and cross-connected reactive power
Optional ICT Module: Supports closed-link three-phase meter testing (I-P Links)
Optional Tests: Neutral current testing
Communication Options: RS232 and Ethernet for automatic calibration
Meter Compatibility: Mechanical, electromechanical, and electronic meters; supports automatic, semi-automatic, and manual operation
Durable Structure: Lightweight, strong, corrosion-resistant aluminum alloy
Efficient Mechanical Meter Testing: Auto rotor mark positioning; unified scanning head movement
Standard Functional Tests: Starting test, creeping test, and synchronous constant measurement
Protection Features: Overload, short voltage circuit, and open current circuit protection
User-Friendly Software: Windows 10/XP support; includes error, harmonic, demand, and influence tests with multi-format data export
Compliance: CE certified and meets EU health and safety standards

Professional After-Sales Support

Our dedicated and well-trained service team ensures that every customer receives fast, reliable, and comprehensive technical support. We provide a full range of after-sales services designed to maximize the performance and longevity of our electric energy meters and meter testing instruments, including:

Preventive and corrective maintenance to ensure long-term product stability
On-site and remote technical training to help users operate and manage equipment efficiently
Customized system and solution design, tailored to different application scenarios
Regular software updates and upgrades to keep test systems accurate, compliant, and up-to-date

By combining technical expertise with customer-focused service, we ensure that clients receive continuous support throughout the entire product lifecycle, enhancing operational efficiency and overall user satisfaction.
