صندلی آزمایش متر ثابت
Created with Pixso.

IEC-Compliant Automatic Meter Test Bench for Energy Meters

IEC-Compliant Automatic Meter Test Bench for Energy Meters

نام تجاری: GENY
شماره مدل: YC1891/3D
مقدار تولیدی: 1 عدد
قیمت: قابل مذاکره
شرایط پرداخت: L/C، T/T، D/P
توانایی عرضه: 30 قطعه در ماه
جزئیات اطلاعات
محل منبع:
چین
گواهی:
ISO, CE
دقت:
0.05 / 0.02 / 0.01٪
قدرت ولتاژ خروجی:
حداکثر 3*2000VA
قدرت خروجی فعلی:
حداکثر 3*2800 VA
دمای محیط:
-10 درجه سانتی گراد -- +40 درجه سانتی گراد
جزئیات بسته بندی:
کیس تخته سه لا
قابلیت ارائه:
30 قطعه در ماه
برجسته کردن:

IEC-compliant automatic meter test bench,stationary energy meter test bench,automatic meter test bench with warranty

,

stationary energy meter test bench

,

automatic meter test bench with warranty

توضیحات محصول

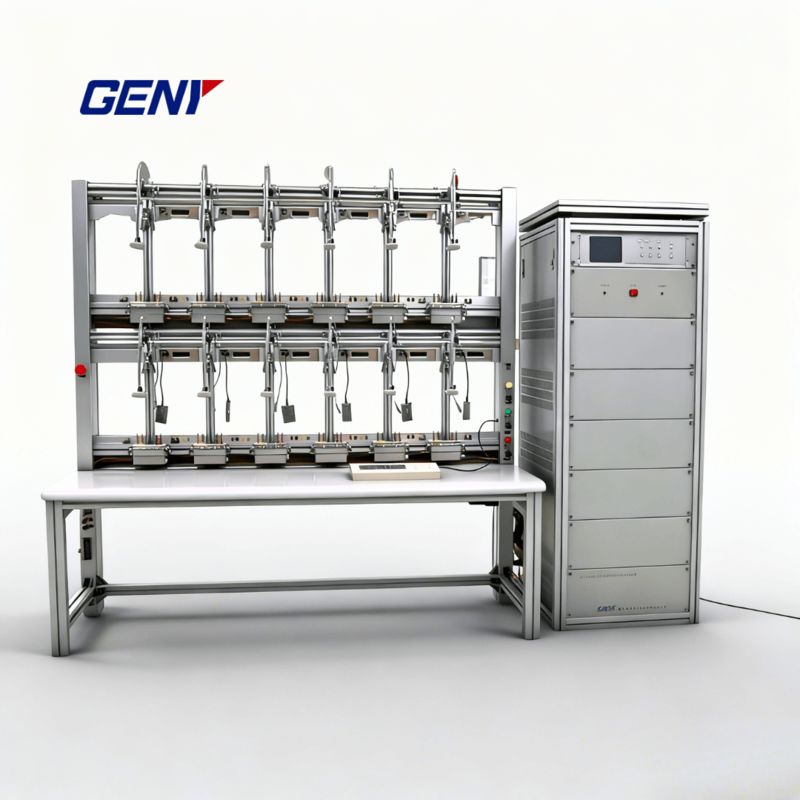

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Our advanced energy meter test system utilizes state-of-the-art electronic measurement technology and a modular design, resulting in a fully automatic calibration solution. The system is fully compliant with the IEC 60736 standard and supports high-efficiency, multi-position testing for electric energy meters.
Designed for versatility, it can be seamlessly integrated with a variety of reference standards and power sources. This flexibility allows us to meet the specific requirements of a wide range of clients, including energy meter manufacturers, power utility companies, governmental metrology institutes, and calibration laboratories.

Key Features
  • IEC-Compliant Performance: Built strictly to IEC standards, supporting full testing coverage for active/reactive/apparent energy (all 4 quadrants) -- critical for global meter certification.
  • Durable Aluminum Alloy Construction: Lightweight yet robust, with corrosion resistance to ensure long-term stability in lab/industrial environments.
  • Fully Automatic Testing Capabilities:
    • Accuracy testing (4-quadrant, IEC-aligned)
    • Creeping (no-load) & starting current tests
    • Dial/register verification
    • Influence quantity testing (voltage, frequency, harmonic distortion)
    • Error repeatability analysis
    • Sub/odd harmonic testing (up to 41st order, IEC-standard)
    • Tamper & fraud monitoring
    • Simultaneous multi-position meter testing (high throughput)
  • Wide Voltage/Current Range: Supports up to 480V & 200A -- compatible with most global meter specifications.
  • Built-In Protection Functions: Overload, voltage short-circuit, and current open-circuit safeguards to protect both the test bench and DUTs.
  • User-Friendly Software: Intuitive interface for Windows XP/7/8/10+; includes dedicated modules for all energy meter types (no extra software required).
  • Flexible Data Management: Stored test data can be exported in multiple formats (CSV, PDF, etc.) for seamless integration with third-party tools.
IEC-Compliant Automatic Meter Test Bench for Energy Meters 0IEC-Compliant Automatic Meter Test Bench for Energy Meters 1IEC-Compliant Automatic Meter Test Bench for Energy Meters 2
