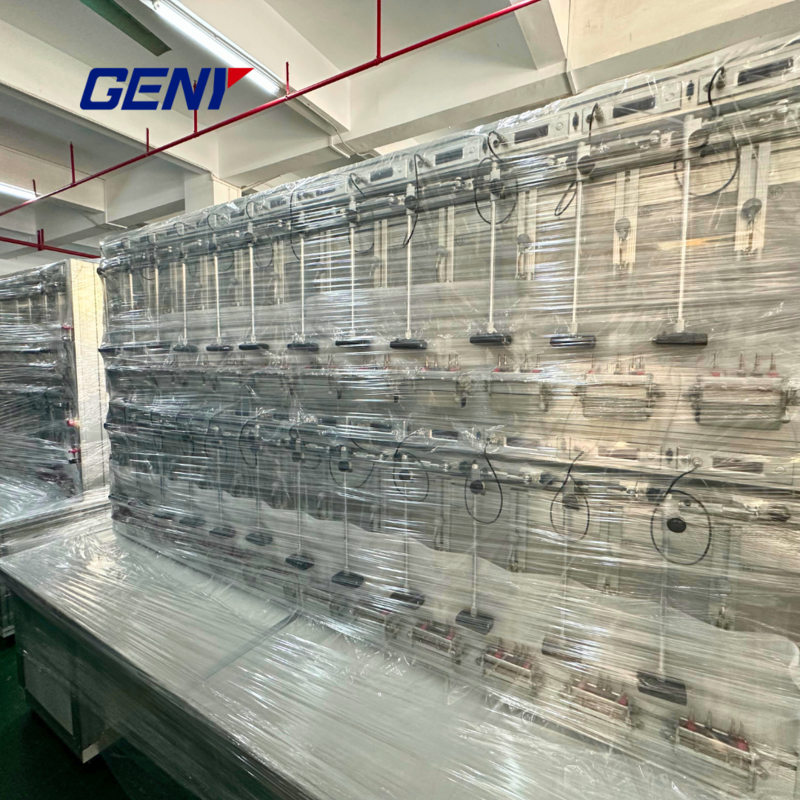

Meter Test Bench for Single Phase Energy Meters

Meter Test Bench for Single Phase Energy Meters

نام تجاری:	GENY
شماره مدل:	YC-1891D
مقدار تولیدی:	1 عدد
قیمت:	قابل مذاکره
شرایط پرداخت:	L/C ، T/T ، D/P
توانایی عرضه:	30 قطعه در ماه

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع:

گواهی:

ISO, CE

محدوده جریان خروجی:

1MA -120A (حداکثر حداکثر 230a)

قدرت جریان خروجی:

2000VA (حداکثر)

قدرت ولتاژ خروجی:

1000VA (حداکثر)

دامنه ولتاژ خروجی:

24V -288V

خروجی ولتاژ: دامنه:

دامنه: 24V - 288V

محدوده خروجی فعلی:

1MA - 120A (حداکثر 230a)

دامنه تنظیم فاز:

0 درجه - 360 درجه

منبع تغذیه:

AC 220 ولت 10 ٪ ، 50Hz ± 2Hz

جزئیات بسته بندی:

تخته سه لا

قابلیت ارائه:

30 قطعه در ماه

برجسته کردن:

single phase energy meter tester,meter test bench equipment,stationary meter test bench

meter test bench equipment

stationary meter test bench

توضیحات محصول

Meter Test Bench for Single Phase Energy Meters

Advanced Testing Solution for Energy Meter Calibration

Our Meter Test Bench provides comprehensive testing capabilities for single-phase energy meters, ensuring accurate calibration and performance verification.

Key Features

Supports testing for: Active power, Reactive power, Active energy, Reactive energy
Start-up and creep tests with automatic calibration
Measures basic error, average error, standard deviation, and 24-hour variation
Comprehensive influence tests including voltage, frequency, harmonics (2nd-21st), and phase sequence
Simultaneous current measurements on the same meter rack
Test energy meters without disconnecting voltage or current circuits
Built-in protections: current open circuit and voltage short circuit
Integrated optical scanning head for improved operational efficiency
Dual operation modes: automatic and manual
PC software for automatic error data processing, storage, and real-time output
Data management with customizable report printing and barcode input
Configurable meter positions: from 3 up to 60 meters
Forward/reverse active and reactive energy error testing
Time base source SW-5D for measuring daily timing error
Communication test and broadcast time synchronization
Multiple verification methods: pulse counting, timing, or start-stop energy
Additional test capabilities: load switching, demand period, register indication, and more

Technical Specifications

General Specifications
Power Supply	AC 220V ±10%, 50Hz ±2Hz
Operating Temperature	-10°C to +40°C
Humidity Range	35% to 95%

Voltage Output
Range	24V - 288V
Maximum Output Power	1000VA
Resolution	0.01%
Stability	0.02% / 120s
Load Regulation	0.01%
Distortion	≤ 0.3% (within full linear load range)

Current Output
Range	1mA - 120A (max 230A)
Maximum Output Power	2000VA
Resolution	0.01%
Stability	0.02% / 120s
Load Regulation	0.01%
Distortion	≤ 0.3% (within full linear load range)
Continuous Current Capacity	100A
